Engine overhaul kit/ 3.8T to 49184



Leyland Marshall - Agricultural tractor
10/60 - Leyland Marshall (Engine - 3.8T)
4/60 - Leyland Marshall (Engine - 3.8T)
4/65 - Leyland Marshall (Engine - 3.8T)
4/65 - Leyland Marshall (Engine - 3.8TA)
4/65 - Leyland Marshall (Engine - 3.8TD)

Engine overhaul kit/ 3.8T from 49185



Leyland Marshall - Agricultural tractor
10/60 - Leyland Marshall (Engine - 3.8T)
384 - Leyland Marshall (Engine - 3.8TD)
4/60 - Leyland Marshall (Engine - 3.8T)
4/65 - Leyland Marshall (Engine - 3.8T)
4/65 - Leyland Marshall (Engine - 3.8TA)
4/65 - Leyland Marshall (Engine - 3.8TD

Product Description
BMC 3.8T,TA & TD (Refer to Dimensions & / or check Serial Numbers with us Prior to Ordering if Necessary - last set of digits on plate are serial number)
Leyland/Nuffield Tractor Models;
4/60, 4/65, 10/60 with 3.8T Engine to 49184
4/65 with 3.8 TA Engine To 49184
4/65 with 3.8 TD Engine To 49184

LINER/SLEEVE DIMENSIONS;
Outside Diameter 4.1855" / 106.312mm
Length 8.7825" / 223.075mm
Lip Diameter 4.497" / 114.224mm
Depth of Lip 0.44" / 11.176mm

Consists of;
4 x Piston, Pin & Clips
4 x Ring Set
4 x Finished Liner
4 x O-Ring Liner
4 x O-Ring Liner
3 x Liner Shim 0.005"
4 x Small End Bush (40 x 34.35 x 31.75mm)
1 x Head Gasket Set
1 x Bottom Gasket Set
1 x Front Crank Seal (57 x 73 x 12.5mm)
1 x Rear Crank Seal (130.5 x 146 x 10.5mm)

Product Description
BMC 3.8T,TA & TD Engines (Refer to Dimensions & / or check Serial Numbers with us Prior to Ordering if Necessary - last set of digits on plate are serial number)
Leyland/Nuffield Tractor Models;
4/60, 4/65, 10/60 with 3.8T Engine From 49185
4/65 with 3.8 TA Engine From 49185
4/65 with 3.8 TD Engine From 49185
384 with 3.8TD Engine To 21240

LINER/SLEEVE DIMENSIONS;
Outside Diameter 4.354" / 110.592mm
Length 8.72" / 221.488mm
Lip Diameter 4.497" / 114.224mm
Depth of Lip 0.44" / 11.176mm

Consists of;
4 x Piston, Pin & Clips
4 x Ring Set
4 x Finished Liner
4 x O-Ring Liner
4 x O-Ring Liner
4 x Liner Shim 0.005"
4 x Small End Bush (40 x 34.35 x31.75mm)
1 x Head Gasket Set
1 x Bottom Gasket Set
1 x Front Crank Seal (57 x 73 x 12.5mm)
1 x Rear Crank Seal (130.5 x 146 x 10.5mm)

Leyland
384
Nuffield
10/42, 10/60, 3/42, 3/45, 4/60, 4/65

Piston Length = 120.79mm. Chamber Depth = 26.97mm. Chamber Ø57.91mm. Pin Ø34.92mm. Compression Height = 70.193mm. To Fit Bore Ø99.57mm. No. of Rings = 5.

Product Details
Leyland/BMC Engine 3.4 Nuffield 4DM, 344 Consists of; 4 x Piston, Pin & Clips 4 x Ring Set 4 x Finished Liner 4 x O-Ring Liner 4 x O-Ring Liner 3 x Liner Shim 0.005" 4 x Small End Bush (40 x 34.35 x 31.75mm) 1 x Head Gasket Set 1 x Bottom Gasket Set
Suitable For - Nuffield models , 344, 4DM
Fits Models
Nuffield
344, 4DM

Leyland Marshall - Agricultural tractor
10/60 - Leyland Marshall (Engine - 3.8T)
344 - Leyland Marshall (Engine - 3.4TD) to 2442
384 - Leyland Marshall (Engine - 3.8TD) to 40898
4/60 - Leyland Marshall (Engine - 3.8T)
4/65 - Leyland Marshall (Engine - 3.8T)
4/65 - Leyland Marshall (Engine - 3.8TA)
4/65 - Leyland Marshall (Engine - 3.8TD)
4DM - Leyland Marshall (Engine - 3.4T)

Leyland
384
Nuffield
10/42, 10/60, 3/42, 3/45, 4/60, 4/65

Nuffield
10/42, 10/60, 3/45, 4/60, 4/65

Liner 100mm Bore - 11mm Lip - 223mm Height

BMC 2.8T,2.8TD, 3.8T, 3.8TA, 3.8TD Engines Upto Serial 49184. (Refer to Dimensions & / or check Serial Numbers with us Prior to Ordering). For this Liner you will require: 1 x 8616 Liner Seals & 8617 Liner Shims. Outside Diameter 4.1855" / 106.312mm. Length 8.7825" / 223.075mm. Lip Diameter 4.497" / 114.224mm. Depth of Lip 0.44" / 11.176mm.

Nuffield
10/42, 10/60, 3/42, 3/45, 4/60, 4/65

Liner - 100mm Bore - 11mm Lip - 221mm Height

BMC 2.8T,2.8TD, 3.8T, 3.8TA, 3.8TD Engines From Serial 49185. (Refer to Dimensions & / or check Serial Numbers with us Prior to Ordering). For this Liner you will require: 1 x 7141A Liner Seals & Either 8729, 8730 Or 8731 Depending On The Thickness Needed. Outside Diameter 4.354" / 110.592mm. Length 8.72" / 221.488mm. Lip Diameter 4.497" / 114.224mm. Depth of Lip 0.44" / 11.176mm. Fits JCB 3, MKII & MKIII. Fits JCB 3C, MKII & MKIII. Fits JCB 3D, MKII.

Fordson
Major, Power Major, Super Major

Leyland
344, 384

Nuffield
10/42, 10/60, 3/42, 3/45, 4/60, 4/65

Leyland
344, 384

Nuffield
10/60, 4/45, 4/60, 4/65, 4DM

Nuffield
4/60, 4/65, 4DM

Leyland
255, 262, 270, 272, 282
Nuffield
10/60, 4/45, 4/60, 4/65, 4DM

Leyland
255, 262, 270, 272, 282

Nuffield
10/60, 4/45, 4/60, 4/65, 4DM

Leyland
255, 262, 270, 272, 285, 462, 472
Nuffield
10/42, 10/60, 3/45, 4/60, 4/65


Liner - 98mm Bore - 8.9mm Lip - 221.5mm Height

Leyland
255, 262, 270, 272, 285, 462, 472

Nuffield
10/42, 10/60, 3/45, 4/60, 4/65

Leyland
2100, 255, 262, 270, 272, 282, 285, 344, 384, 4100, 462, 472, 482, 485, 602, 604, 702, 704, 802, 804

Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

JCB Fuel Lift Pump BMC, Nuffield & Leyland Engines; 2.6, 2.8TD, 3.4T, 3.4TD, 3.8T, 3.8TD, 4.98NV, 4.98NT, 6.98NT. Fits JCB 3, MKII & MKIII. Fits JCB 3C, MKII & MKIII. Fits JCB 3D, MKIII

Leyland
245, 253, 255, 262, 270, 272, 282, 344, 384, 462, 472, 482
Marshall
502, 602, 604, 702, 704, 802, 804
Nuffield
3/45, 4/65

Nuffield
10/60, 4/60, 4/65

Nuffield
10/42, 10/60, 3/42, 3DL, 4/60

Nuffield
10/42, 10/60, 4/60

Massey Ferguson

100 Series:
130, 135, 135 Petrol, 158, 165, 168, 175, 178, 185, 188

French 800 Series:
835

Pre 100 Series:
35 3cyl, 35 Petrol, 65

JCB
Sitemaster Std
2
2 B, 2 D, 3 C MKII, 3 C MKIII, 3 D, 3 D MKII, 3 D MKIII, 3 MKII, 4 D
Leyland
2100, 255, 262, 270, 272, 285, 344, 384, 4100, 462, 472, 485, 602, 604, 702, 704, 804
Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Suitable for: Case, Claas, David Brown, Ford New Holland, Landini, Massey Ferguson, Renault, Valmet + many more!

BMC Engines 2.6, 3.4T, 3.4TD, 3.8T, 3.8TA, 3.8TD
Length:110mm / 4.331". Outer Diameter: 72mm / 2.835".

Nuffield
342, 344, 384, 3DL, 4/60, 4DM

Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Leyland
252, 262, 270, 272, 344, 384, 462, 472
Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Leyland
2100, 255, 262, 270, 272, 285, 344, 384, 4100, 462, 472, 485, 602, 604, 702, 704

Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Leyland
2100, 255, 262, 270, 272, 285, 344, 384, 4100, 462, 472, 485, 602, 604, 702, 704

Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Nuffield
10/60, 4/60, 4/65, 4DM

Nuffield
10/60, 4/60, 4DM

8G2370-20 BEARING SET .020 (U/S). 0.020" (0.508mm) undersized connecting rod big end bearing set for the BMC 3.4, Leyland 3.8T and Leyland 3.8TA engines.

See item 6 in the illustration.

Fitted to:

Nuffield Universal Four (4DM)
Nuffield 460
Nuffield 10/60 (some late build Nuffield 10/60 tractors were fitted with the 3.8TD engine and therefore require larger bearings)

Note: If your crankshaft is worn or damaged it can be reground to take undersize bearings. Undersized (U/S) bearings have same measurement at outer side but are a little bit thicker from inner side. The following standard and undersize bearings are available;

8G2370 BEARING SET (STD)
8G2370-10 BEARING SET .010 (U/S)
8G2370-15 BEARING SET .015 (U/S)
8G2370-20 BEARING SET .020 (U/S)
8G2370-30 BEARING SET .030 (U/S)
8G2370-40 BEARING SET .040 (U/S)
8G2370-45 BEARING SET .045 (U/S)
8G2370-50 BEARING SET .050 (U/S)
8G2370-60 BEARING SET .060 (U/S)


Please call for items above

Leyland
344, 384, 4DM

Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Leyland
344, 384, 4DM

Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM
BMC Engines 2.6, 3.4T, 3.4TD / 2.8T, 2.8TD, 3.8T, 3.8TA, 3.8TD

P4SA1066 WATER PUMP fitted to Model DM4 fitted with the Perkins P4 engine.

Nuffield
10/60.
S.58731, S58731, NT5594, NT5595

Nuffield
10/42, 10/60, 3/42, 3DL, 4/60

Fitts most tractors with this type fitting

Ford New Holland
Fordson
Major, Power Major, Super Major

Nuffield
10/42, 10/60, 3/42, 3DL, 4/60, 4DM

Ford New Holland
Fordson
Major, Power Major, Super Major

Nuffield
10/42, 10/60, 3/42, 3DL, 4/60, 4DM

Nuffield
10/42, 10/60, 3/42, 3DL, 4/60, 4DM

Nuffield
3/42, 3DL, 4/60, 4DM

Nuffield
10/42, 10/60, 3/42, 3DL, 4/60, 4DM

Nuffield
3/42, 3DL, 4/60, 4DM

Nuffield
10/42, 10/60, 3/42, 3DL, 4/60, 4DM

Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Seal-Rear Axle - Not suitable for models with sliding hubs

Leyland
252, 262, 270, 282, 344, 384, 462, 472, 482
Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Leyland
245, 253, 255, 262, 272, 344, 384

Nuffield
3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Nuffield
10/42, 10/60, 3/42, 3DL, 4/60, 4DM

Gear Lever Knob - Throttle. (Ball Diameter 42mm)

Nuffield
10/42, 10/60, 3/42, 3DL, 4/60, 4DM

Knob-P.T.O. Lever. (Ball Diameter 32mm)

Nuffield
10/42, 10/60, 3/42, 3/45, 3DL, 4/60, 4/65, 4DM

Nuffield
10/42, 10/60, 3/42, 3DL, 4/60, 4DM

Leyland
255, 262, 270, 272, 344, 384, 462, 472, 602, 604, 702, 704

Nuffield
3/45, 4/65

Leyland
245, 253, 255, 262, 270, 272, 282, 285, 344, 384, 2100
Nuffield
3/45, 4/65

Leyland
245, 253, 255, 262, 270, 272, 282, 285, 344, 384, 502, 602, 702, 802, 2100

Nuffield
3/45, 4/65

Universal 3/4
342, 460, 10/42, 10/60

Nuffield 3DL/4DM
342, 460
10/42, 10/60

Nuffield 3DL, 4DM
342, 460
10/42, 10/60

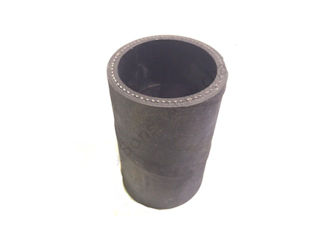

This bypass hose connects the water pump to the bottom hose casting.

Nuffield 3DL, 4DM
342, 460
10/42, 10/60

Nuffield 3DL,DM
342, 460
10/42, 10/60
345, 465

10/42, 10/60

3DL Universal Three & Four
342, 460
10/42, 10/60

Nuffield 3DL, 342, 10/42
Leyland 255, 270, 262, 272, 462, 472, 282, 482
